profile Name
INOWA145
profile Model
INOWA SLIDING SYSTEM
material
Aluminum
Coating
Electrostatic powder Anodized finish
certificate
DIN EN 1026 / 12 207 DIN EN 1027 / 12 208
FRAME DEPTH
145mm
VENT DEPTH
60mm
GLASS THICKNESS
Up to 42mm
REBATE HEIGHT
25mm
GLAZING TYPE
Dry glazing with EPDM
Download Catalog
INOWA145.pdf
Explanations

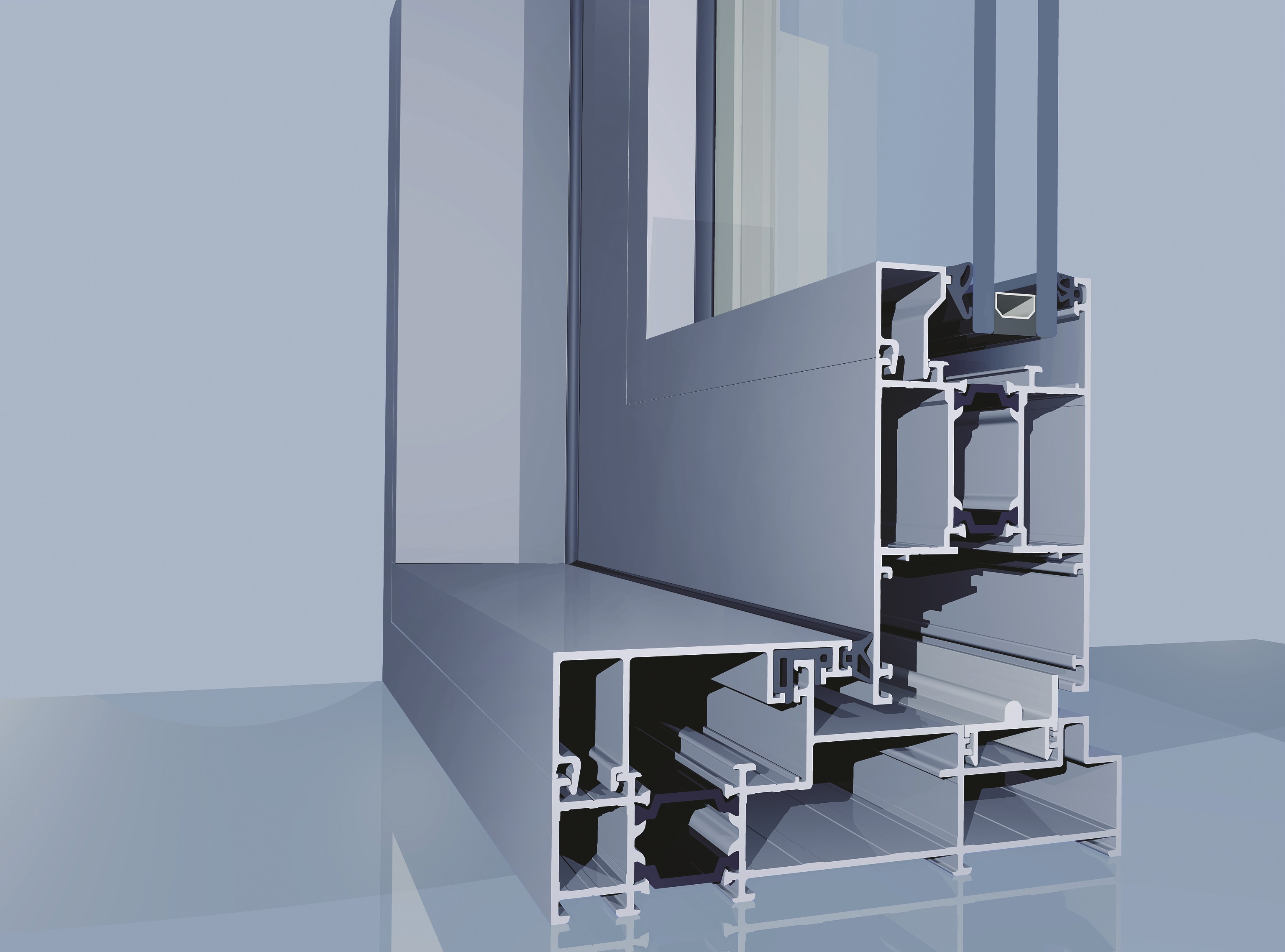

Inowa 145 is an isolated sliding patio door system with all around locking points on moveable sash with a high impermeability due to circumferential gasket and active control of all locking points (also in the mullio). It is also smart sliding convenient and easy operation with little effort due to innovative closing motion across the frame profile with hidden technology, suitable for sliding door and windows up to:120,200 and 300 kg per sash.
