GS142

Product Spesifications

profile Name

GS142

profile Model

LIFT AND SLIDE SYSTEM

material

Aluminum

Coating

Electrostatic powder Anodized finish

FRAME DEPTH

142mm

VENT DEPTH

60mm

GLASS THICKNESS

Up to 40mm

REBATE HEIGHT

22mm

GLAZING TYPE

Dry glazing with EPDM

Download Catalog

GS142.pdf

Explanations

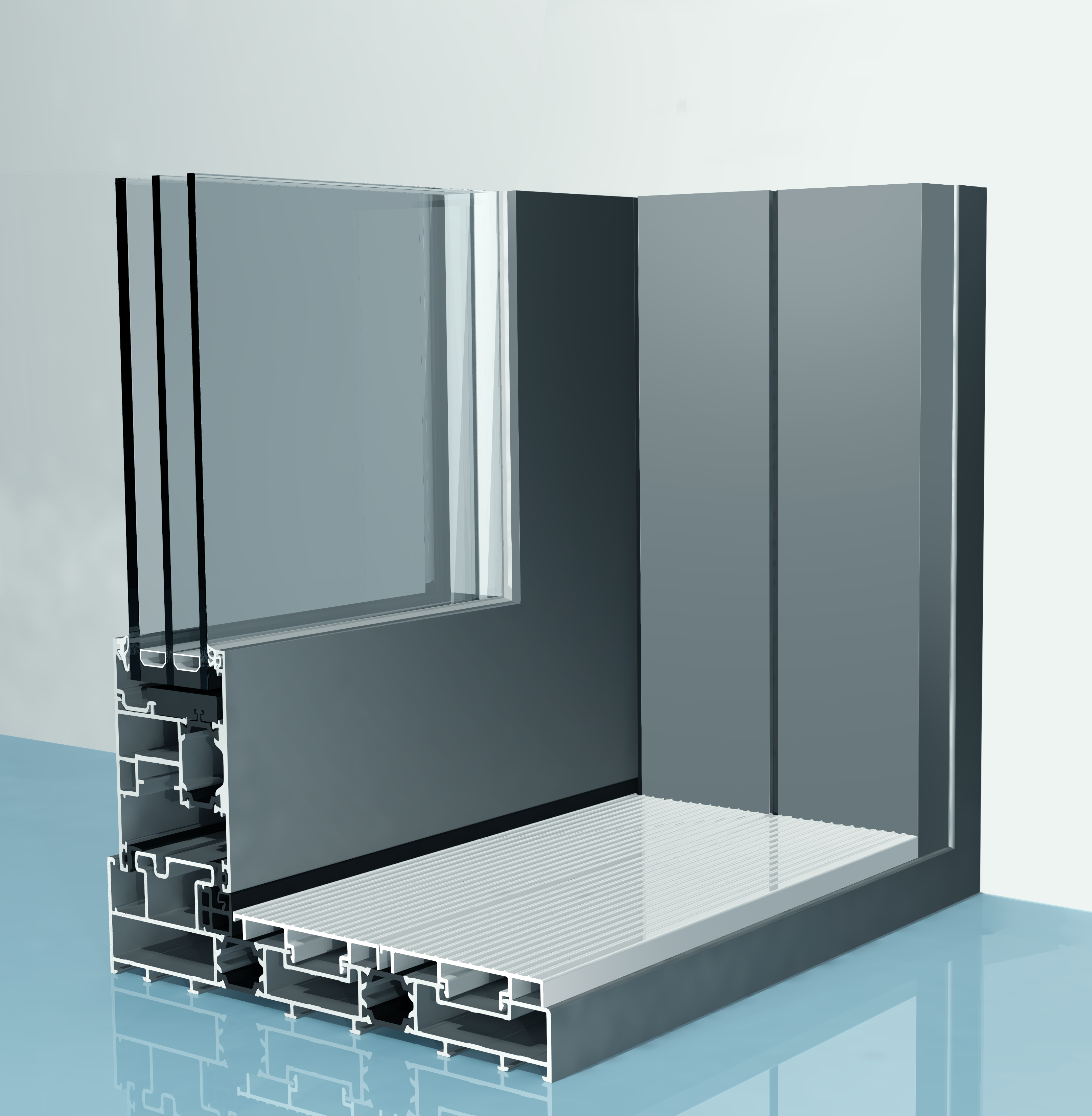

GS142 is a lift & slide system with maximum sash weight up to 300kg. It can support a big sizes of glazing and ideal for patio doors and suitable for places with large viewing to outside. GS142 available in 2, 3 and four opening sashes with different combination of fix and operable sashes.
